Scope of application:
Widely used in urban power grid construction and transformation; Urban municipal reconstruction projects; Civil aviation airport engineering construction; Construction of engineering parks and communities; Traffic, road and bridge construction urban street lamp cable laying, and play the role of guidance and protection.
Product features:
1. Material characteristics

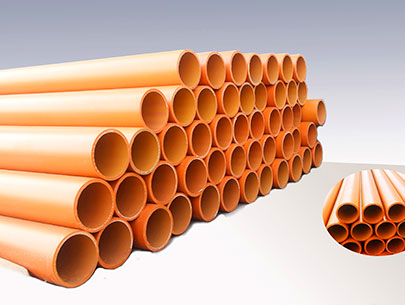

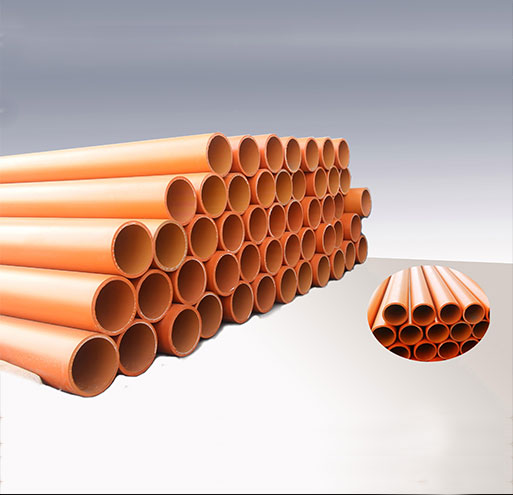

CPVC power pipe to heat resistance, excellent insulation properties of PVC-C resin as the main material, CPVC products are recognized as green products, its excellent physical and chemical properties are more and more attention by the industry.

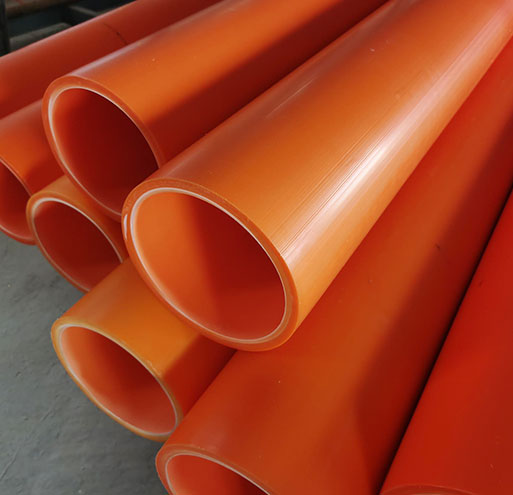

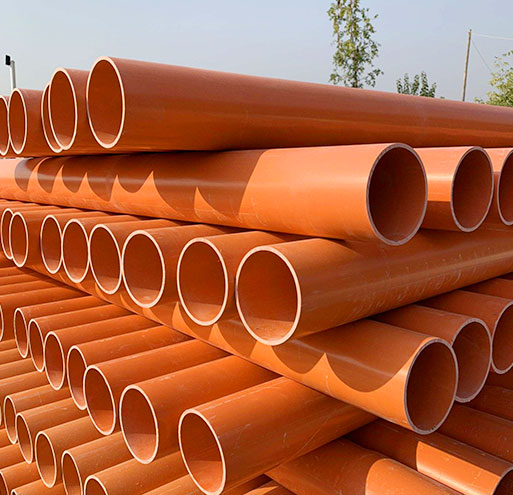

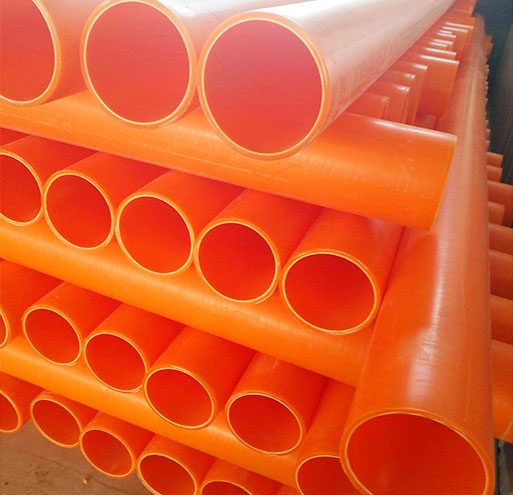

CPVC power tube is hard straight solid wall tube, the inner and outer walls are smooth and flat, the color is orange red, the color is bright and eye-catching.
2, heat resistance
The heat resistance temperature of CPVC power tube is increased by 15℃ compared with the ordinary UPVC double-wall bellows, and it can maintain no deformation and has sufficient strength under the environment above 93℃.
3. Insulation performance
CPVC power tube can withstand high voltage of more than 30,000 volts.
4. Compression performance
After material modification, the product ring stiffness of CPVC power pipe reaches 1Okpa, which is obviously higher than the relevant national departments for buried plastic pipe, the ring stiffness should be above 8kpa.
5, high impact strength
CPVC power tube can withstand the impact force of 1kg hammer and 2m height at the temperature of 0℃, which fully reflects the low temperature impact performance of the material, which is fully applicable to the requirements of construction environmental conditions.
6, flame retardant performance
PVC and PVC-C materials have good flame retardant properties, can be extinguished from the fire. In particular, PVC-C material, because of its chlorine content is significantly higher than PVC, so the flame retardant and smoke density index has been significantly improved.
7. Installation performance

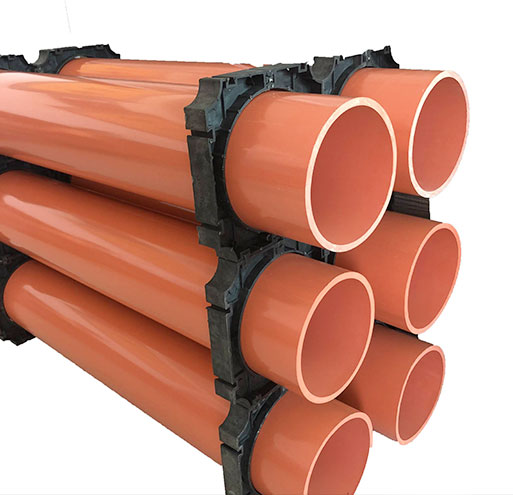

CPVC power pipe is light in weight, high in strength, simple in construction and laying method, can realize excavation and burying at night, backfill the road surface, and can be opened to traffic as usual during the day; Elastic sealing rubber ring socket connection, easy to install and connect, connection sealing performance is good, can prevent groundwater leakage, effectively protect the use of power cable safety.
8, long service life
CPVC power pipe material corrosion resistance, anti-aging, service life can be more than 50 years.
